PROFILDECK® Aluminium Joist H55
Tile Edging Piece for Profildeck
Reference:
IPDARDAC10000
Compatible
PROFILDECK joists
Terraces
Paved terrace
Hybrid terraces
Riser pedestal terraces
Paving riser pedestals
Accessories
Our products in detail
Description

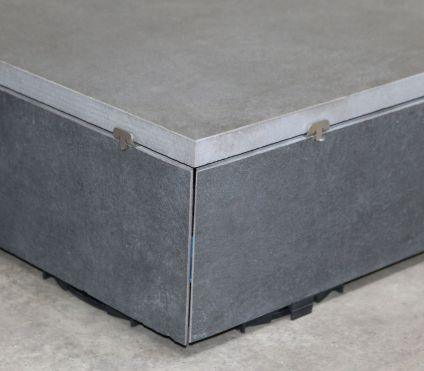

The paving edge end stop prevents paving laid on PROFILDECK® joists from moving horizontally. It also ensures that all terrace paving remains locked in place.
Made in France.
10 year warranty
Iso9001
Iso14001
label MORE.
Information sorting
Keypoints
Virtually invisible to avoid compromising the visual appeal of the installation.
Prevents any movement of paving over time.
Recommended for terraces with high footfall (e.g. those of public buildings).
Quick and easy to fit.
Technical characteristics
Length in mm:
116
Length in mm:
20
Thickness in mm:
1,5
Color:
Steel
Material:
Stainless steel
Weight KG:
0,03kg
Packing:
box of 10 pcs
Installation and Application
Compatible with 55 and 27 mm high Profildeck® profiles.
To be fitted where 2 tiles meet.
Allow 2 paving edge end stops at corners.
Allow 1 structural screw per paving edge end stop.
a question?
Our landscaping experts have the answers
1. How to ensure the durability of your aluminium joist terrace?
The durability of a terrace built using aluminium joists depends on a number of criteria :
- For maximum durability, we recommend preparing the ground correctly before beginning the project to ensure that the surface is level and stable enough to ensure a long life for the riser pedestal installation
- Build your terrace in accordance with our installation instructions and advice
- Lay the joists on Jouplast packers or riser pedestals to prevent rising damp
- Use joist protection tape, etc.
2. How many joists do you need for your terrace?
Although we can tell you the approximate number of joists you will need per m2 based on your choice of terrace surface, it is not possible to quantify the precise number of aluminium joists required, except on a project-by-project basis. Nevertheless, we can say with certainty that :
- For a private garden terrace using H/55mm joists, the recommended centreline spacing distance between riser pedestals is 80cm
- Using H/27mm joists, the recommended centreline spacing distance between riser pedestals is 50cm
Centreline spacing is the distance between joists. For a precise calculation, you can send us the details of your project, but you will soon be able to make the same calculation using the Jouplast® app.
