Profildeck glued side Edge Finishing T-piece for H55 Aluminium Joist

Reference: IPDTEFIN1000

Compatible Paving riser pedestals Accessories PROFILDECK joists Terrace finishing Terraces Paved terrace Hybrid terraces Riser pedestal terraces

Accessory for creating a glued side finish with PROFILDECK®.

Used in conjunction with the side cladding support, it supports the edge slabs or tiles.

Configure a project

Find a dealer

Our products in detail

Description

te-de-finition-laterale-profildeck-zoom-1-1

2 glue trap systems.

te-de-finition-laterale-profildeck-zoom-2-1

Fixed in place using PROFILDECK® structural screws in the 4 holes provided.

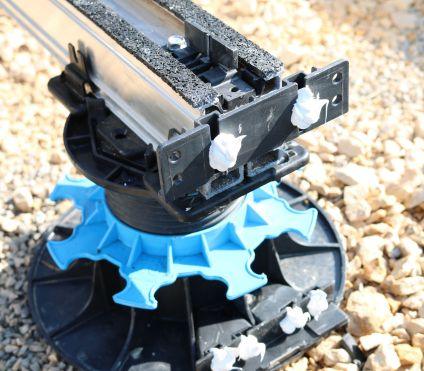

Used in conjunction with the side cladding support, this component supports the edge slabs or tiles, and provides a fixing point for the edge upstand tiles of a Profildeck® terrace.

Made in France.

10 year warranty

Iso9001

Iso14001

label MORE.

Information sorting

Recycled material.

Keypoints

A single product for fixing terrace end and side cladding.

Invisible finishing system that holds the edge profile in place.

Quick and easy to fit.

Glue trap systems.

Documentation

Technical data sheet

PDF - 693 KB

Profildeck edge finishing t-piece for H55 aluminium joist

Open

Directions for use

PDF - 6 MB

Pavement terrace H55

Open

Directions for use

PDF - 5 MB

PROFILDECK® Hybrid timber and paved terrace H55

Open

Directions for use

PDF - 2 MB

Laying a SPA with Profildeck

Ouvrir

Products compatibility

PDF - 3 MB

PROFILDECK® Range

Open

Technical characteristics

Length in mm:

108

Width in mm:

66,5

Color:

Black

Material:

Filled polypropylene

Weight KG:

0,045kg

Packing:

Box of 10 parts

Installation and Application

Fixed in place using PROFILDECK® structural screws.

To be used in conjunction with the the paved terrace side cladding support.

Not compatible with the 27mm-high aluminium joist.

Complementary products...

Jouplast experts offer you the products you need for your terrace project.

a question?

Our landscaping experts have the answers

1. How to ensure the durability of your aluminium joist terrace?

The durability of a terrace built using aluminium joists depends on a number of criteria :

For maximum durability, we recommend preparing the ground correctly before beginning the project to ensure that the surface is level and stable enough to ensure a long life for the riser pedestal installation
Build your terrace in accordance with our installation instructions and advice
Lay the joists on Jouplast packers or riser pedestals to prevent rising damp
Use joist protection tape, etc.

2. How many joists do you need for your terrace?

Although we can tell you the approximate number of joists you will need per m2 based on your choice of terrace surface, it is not possible to quantify the precise number of aluminium joists required, except on a project-by-project basis. Nevertheless, we can say with certainty that :

For a private garden terrace using H/55mm joists, the recommended centreline spacing distance between riser pedestals is 80cm
Using H/27mm joists, the recommended centreline spacing distance between riser pedestals is 50cm

Centreline spacing is the distance between joists. For a precise calculation, you can send us the details of your project, but you will soon be able to make the same calculation using the Jouplast® app.
