ALVEPLAC Gravel Stabilisation Single Mat - Grey
ALVEPLAC Gravel Stabilisation Double Mat White
Reference:
IHALV030DP80000
Compatible
Driveways and parking spaces
Pavers
Stabilisation modules
Aggregate modules
Our products in detail
Description
60G/m² geotextile membrane permanently bonded to the honeycomb cells by the exclusive Jouplast® welding process used during the injection moulding phase.
Integral interlocking assembly system to ensure maximum stability of adjoining modules.
Keeps aggregate in place

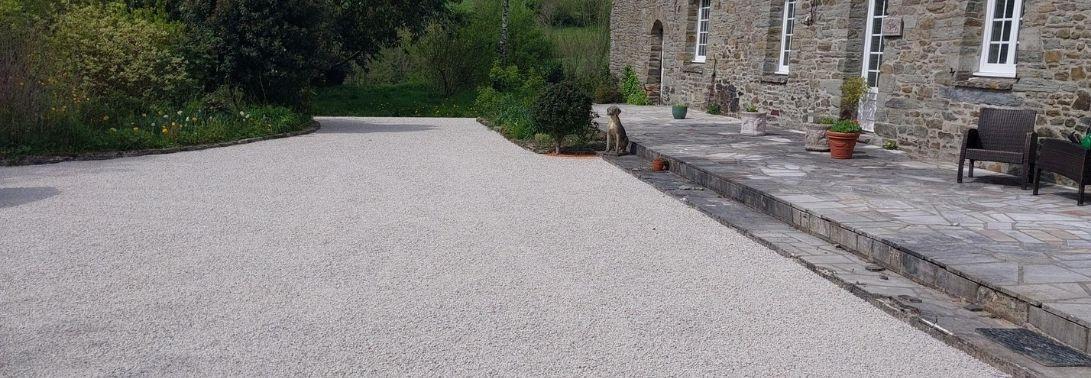

Gravel stabilisation tile with integrated geotextile membrane for use in landscaping projects. Ideal for creating walkways, garden paths, car parking areas, paths and driveways for private, public, commercial or industrial use. Creates a perfect finish, because the tile becomes invisible when filled.
Made in France.
10 year warranty
Iso9001
Iso14001
label MORE.
Information sorting
Recycled material.
Keypoints
Keeps aggregate in place.
Rapid surface water infiltration.
Prevents puddling and rutting.
Quick and easy to install.
Technical characteristics
Length in mm:
1166
Width in mm:
1600
Thickness in mm:
30
Material:
Polypropylene
Color:
White
Usable area in SQM:
1,817m2
Weight KG:
3,4kg
Stackable:
Yes
Packing:
Pallet of 19 parts
Installation and Application
Alveplac® is guaranteed effective once the modules have been filled with aggregate, plus an additional 2 cm top layer. Fill using 5/15 or 8/16 driveable aggregate.
a question?
Our landscaping experts have the answers
1. Is it essential to use aggregate stabilisation modules?
The use of aggregate stabilisation modules is not essential, but it is strongly recommended for several reasons:
- To prevent aggregate depression and spread: where no stabilisation is used, the aggregate can be depressed into the ground and spread.
- To improve drainage: aggregate stabilisation often involves the use of a geotextile membrane to improve water soil infiltration, and therefore reduce the risk of puddling and erosion.
- Visual appearance and maintenance: stabilisation modules hold aggregate in place, improving the visual appearance and making maintenance easier.
- Durability and strength: aggregate stabilisation extends the durability of aggregate surfaces, as a result of its higher load-bearing capacity and resistance to extreme weather conditions.
